3 Cores MV XLPE Electrical Power Cable Aluminum Conductor 2 Years Warranty

MOQ:	500 METRI
prezzo:	US$0.51 - US$125 / Meter
Imballaggio standard:	Tamburi di legno
Periodo di consegna:	10 GIORNI
Metodo di pagamento:	T / T, L / C
Capacità di approvvigionamento:	21.000 KMs al mese

Dettagli Informazioni

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

La Cina

Marca

QINGDAO YICABLE CABLE

Certificazione

ISO,CE,IEC,TUV,KEMA

Nome del prodotto:

cavo di sistemi MV dei 3 centri

Isolamento:

XLPE

armatura:

Nessuno

conduttore:

Di rame

I centri:

i 3 centri

standard:

L'IEC, BS, È, VDE

Garanzia:

2 anni

smaple libero:

Sì

Goffratura:

Il cavo può essere impresso secondo richiesto

Evidenziare:

xlpe electrical cable

xlpe power cable

Descrizione del prodotto

3 Cores MV XLPE Electrical Cable Aluminum Conductor Shanghai Top Manufacturer

Application

Used in transformer stations, switching blocks, in electric power plants and industrial plants. Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Standards

International: IEC 60502-2, IEC 60228

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

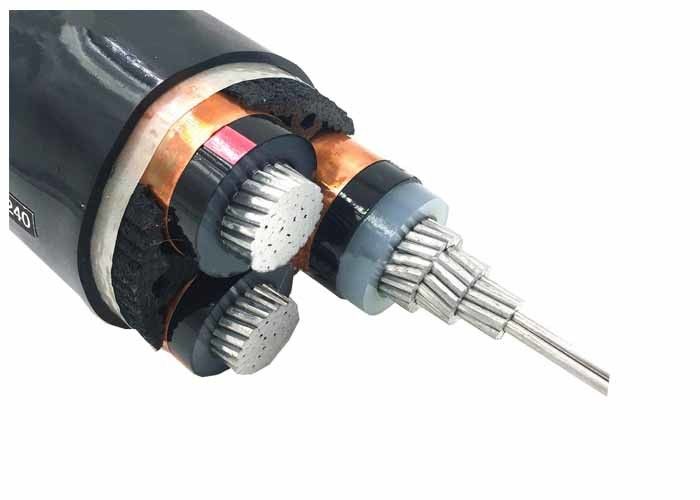

Construction

1 ..... stranded bare Aluminum
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... semi-conducting tape
6 ..... screen of copper wires or tape

7 ..... Fillers strip, Yarn, or Paper
8 ..... Non woven Wrapping tape or Flame Retardant

9 .... Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH

Technical data:

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-20°C till +90°C
	fixed		-20°C till +90°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 50265-2-1

*) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length

MV(6 to 35kv) Power Cable Details

YJ: XLPE insulation

V: PVC sheath

32: Steel wire armoring—3 cores

22: Steel tape armoring—3 cores

72: Aluminum wire armoring—1 core

62: Stainless steel tape armoring—1 core

ZR: Flame resistant

MV(11kv 15kv 33kv) Power Cable
Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV	No.of Core	Conductor cross-section area(mm2)
xlpe insulation	1 core 3 core	10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm
Cu core
YJV, N2XSY;PVC sheathed power cable
YJV22;steel tape armoured,PVC sheathed power cable
YJV32,YJV42;steel wire armoured ,PVC sheathed power cable
Al Core
YJLV, NA2XSY; PVC sheathed power cable
YJLV22;steel tape armoured,PVC sheathed power cable
YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable

This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.

Certificate

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

PACKING AND SHIPPING

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
