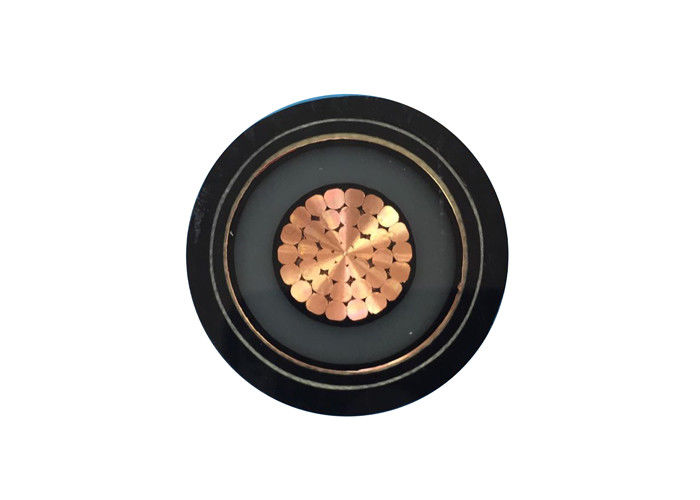

Professional Insulated XLPE Single Core Cable 12.7 / 22kV Rated Voltage N2XSY

prodotti

Cavo di controllo multiconduttore

fumo basso zero cavi dell'alogeno

filo di alluminio rivestito di rame

cavo del cannello per saldare

Contattaci

Mr. William

sales1@holdonecable.com

86-- 18724796885

+86 19026815676

Contattaci ora

Professional Insulated XLPE Single Core Cable 12.7 / 22kV Rated Voltage N2XSY

MOQ:	200
prezzo:	USD 1-100 Per Meter
Imballaggio standard:	tamburo Ferro-di legno o tamburo di legno
Periodo di consegna:	5-10 giorni
Metodo di pagamento:	L/C, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	100KM Al MESE

Dettagli Informazioni

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

La Cina

Marca

QINGDAO YICABLE CABLE

Certificazione

IEC/CE/KEMA

Tensione nominale:

12/20kV o 12.7/22kV

Tipo di conduttore:

Conduttore incagliato (classe 2)

Segno del centro:

Striscia di colore o di numero

Segno della guaina:

Stampa a inchiostro o imprimere

Lunghezza del tamburo:

500m o secondo la richiesta

colore esterno della guaina:

Il nero o su misura

Evidenziare:

xlpe electrical cable

cross linked polyethylene cable

Descrizione del prodotto

Professional Insulated XLPE Single Core Cable 12.7 / 22kV Rated Voltage N2XSY

Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage

12/20kV or 12.7/22kV

Construction:

Conductor	Copper Conductor as per IEC 60228,Class 2
Conductor	Circular or Shaped conductor
Insulation	XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional	Copper tape or copper wires braiding optional
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Technical data: Rated voltage 12/20kV or 12.7/22kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request

Installation

1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.

Technical parameter:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
1 × 35	7/2.52	5.5	1.9	25	979	0.524	42	170	180
1 × 50	10/2.52	5.5	1.9	27	1155	0.387	42	205	215
1 × 70	14/2.52	5.5	2	28	1393	0.268	42	260	265
1 × 95	19/2.52	5.5	2	30	1681	0.193	42	315	315
1 × 120	24/2.52	5.5	2	32	1979	0.153	42	360	360
1 × 150	30/2.52	5.5	2.1	33	2301	0.124	42	410	405
1 × 185	37/2.52	5.5	2.2	35	2718	0.0991	42	470	455
1 × 240	48/2.52	5.5	2.2	37	3302	0.0754	42	555	530
1 × 300	61/2.52	5.5	2.3	39	3941	0.0601	42	640	595
1 × 400	61/2.97	5.5	2.4	43	4931	0.047	42	745	680
1 × 500	61/3.23	5.5	2.5	47	5956	0.0366	42	885	765
1 × 630	61/3.50	5.5	2.6	51	7769	0.0283	42	980	860
1 × 800	91/3.20	5.5	2.8	55	8945	0.0221	42	1100	950
1 × 1000	91/3.75	5.5	2.9	61	10918	0.0176	42	1230	1040
3 × 35	7/2.52	5.5	2.7	53	3348	0.524	42	140	155
3 × 50	10/2.52	5.5	2.9	55	3904	0.387	42	165	180
3 × 70	14/2.52	5.5	2.9	59	4623	0.268	42	210	220
3 × 95	19/2.52	5.5	3	62	5593	0.193	42	255	265
3 × 120	24/2.52	5.5	3.1	66	6495	0.153	42	290	300
3 × 150	30/2.52	5.5	3.2	69	7637	0.124	42	330	340
3 × 185	37/2.52	5.5	3.4	72	8803	0.0991	42	435	380
3 × 240	48/2.52	5.5	3.5	77	10729	0.0754	42	495	435
3 × 300	61/2.52	5.5	3.7	82	12723	0.0601	42	565	485
3 × 400	61/2.97	5.5	3.9	90	16207	0.047	42	640	520

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Professional Insulated XLPE Single Core Cable 12.7 / 22kV Rated Voltage N2XSY 0
