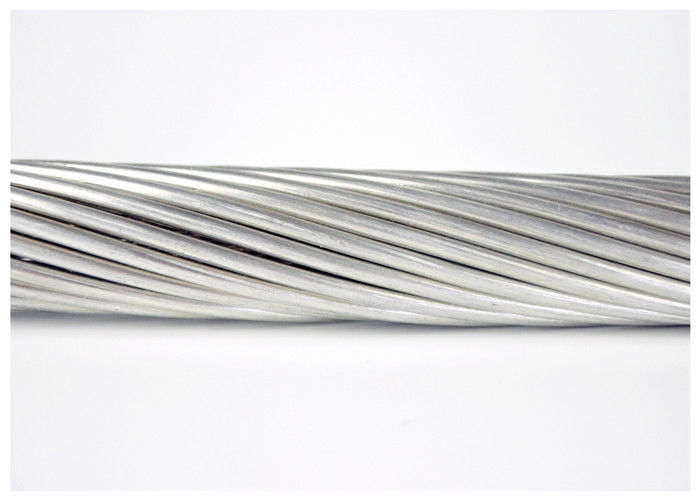

Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines
  • Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines

Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines

Luogo di origine La Cina
Marca QINGDAO YICABLE CABLE
Certificazione EN51082
Dettagli del prodotto
conduttore:
Alluminio (AAC)
Isolamento:
No
No dei cavi:
7
Nome in codice:
Moscerino
Area:
23,3 millimetri quadrati
Applicazione:
Centrale elettrica sopraelevata
Evidenziare:

aaac conductor

,

acsr conductor

Payment & Shipping Terms
Quantità di ordine minimo
0.5KM
Imballaggi particolari
Tamburo di legno o tamburo d'acciaio
Tempi di consegna
10Days o più
Termini di pagamento
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione
1000KM Al MESE
Descrizione del prodotto

Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines



1 Application of All Aluminium Bare Conductors (AAC)



The bare conductor: AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.



Type

  Description No. of Wire

Section Area

(mm2)
AAC All Aluminum Conductor 7~127 16~1500
AAAC All Aluminum Alloy Conductor 7~91 17~1300
ACSR

Aluminum Conductors

Steel Reinforced

 7~103 16~1250
AACSR

Aluminum Alloy Conductors

Steel Reinforced

 7~103 16~1250
ACAR/AW

Aluminum Conductors

Aluminum Alloy Reinforced

 7~103 16~1250
ACSW/S

Aluminum Conductors

Aluminum Clad Steel Wire/Strand

 7~103 16~1250
GSW Galvanized Steel Wire 3/2.64~37/4.55 16.41~765.99



AAC

               EN 51082

  Area No. of Diameter   Mass per unit Rated DC
Code Name   wires Wire   Cond. length strength Resistance
  mm2   mm   mm kg/km kN Ω/km
Midge 23.3 7 2.06   6.18 63.8 4.20 1.2249
Gnat 26.9 7 2.21   6.63 73.4 4.83 1.0643
Mosquito 36.9 7 2.59   7.77 100.8 6.27 0.7749
Ladybird 42.8 7 2.79   8.37 117.0 7.28 0.6678
Ant 52.8 7 3.10   9.30 144.4 8.72 0.5409
Fly 63.6 7 3.40   10.2 173.7 10.49 0.4497
Bluebottle 73.6 7 3.66   11.0 201.3 11.78 0.3880
Earwig 78.6 7 3.78   11.3 214.7 12.57 0.3638
Grasshopper 84.1 7 3.91   11.7 229.7 13.45 0.3400
Clegg 95.6 7 4.17   12.5 261.3 15.30 0.2989
Wasp 106.0 7 4.39   13.2 289.6 16.95 0.2697
Beetle 106.4 19 2.67   13.4 292.4 18.08 0.2701
Bee 132.0 7 4.90   14.7 360.8 21.12 0.2165
Hornet 157.6 19 3.25   16.3 433.2 26.01 0.1823
Caterpillar 185.9 19 3.53   17.7 511.1 29.75 0.1546
Chafer 213.2 19 3.78   18.9 586.0 34.12 0.1348
Spider 237.6 19 3.99   20.0 652.9 38.01 0.1210
Cockroach 265.7 19 4.22   21.1 730.4 42.52 0.1081
Butterfly 322.7 19 4.65   23.3 886.8 51.63 0.0891
Moth 373.1 19 5.00   25.0 1025.3 59.69 0.0770
Drone 372.4 37 3.58   25.1 1027.1 59.59 0.0774
Centipede 415.2 37 3.78   26.5 1145.1 66.43 0.0695
Maybug 486.1 37 4.09   28.6 1340.6 77.78 0.0593
Scorpion 529.8 37 4.27   29.9 1461.2 84.77 0.0544
Cicada 628.3 37 4.65   32.6 1732.9 100.54 0.0459


Midge Code Bare Overhead Conductors For Electrical Power Transmission / Distribution Lines 0
