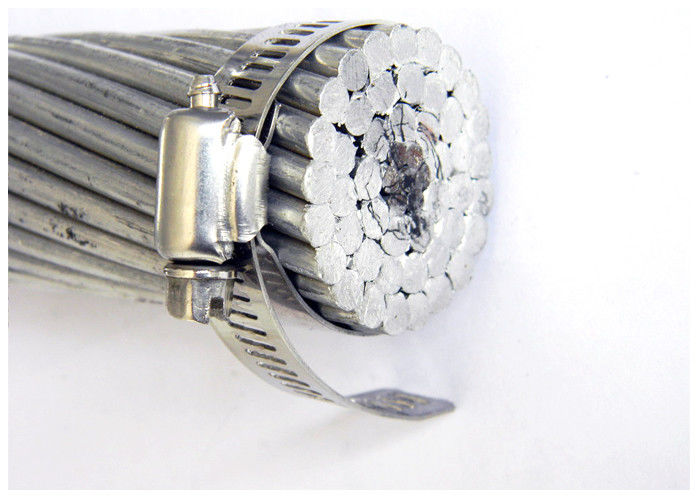

Concentric Lay Stranded Bare Conductor High Voltage AAC AAAC ACSS/TW ACCC

MOQ:	0.5KM
prezzo:	0.10-10.99USD/m
Imballaggio standard:	Tamburo di legno o tamburo d'acciaio
Periodo di consegna:	15Days o più
Metodo di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	1000KM Al MESE

Dettagli Informazioni

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

La Cina

Marca

QINGDAO YICABLE CABLE

Certificazione

IEC61089, ASTM B232, EN51082

Conduttore esterno:

Alluminio

Conduttore interno:

Steel

Sezione trasversale:

² del ² ~900mm di 12mm

No dei cavi:

7pcs~73pcs

Isolamento:

Tipo:

Alta tensione

Applicazione:

Centrale elettrica sopraelevata

Evidenziare:

aaac conductor

acsr conductor

Descrizione del prodotto

Concentric Lay Stranded Bare Conductor High Voltage AAC AAAC ACSS/TW ACCC

Place of Origin: Shanghai, China (Mainland)
Brand Name: SHAN, OEM
Model Number: Overhead Conductor ACSR, AAC, AAAC, ACSS/TW, ACCC, AACSR, ACAR
Insulation Material: Bare conductor
Type: Overhead, Medium Voltage, High voltage, low voltage bare conductor
Application: Overhead, Overhead conductor Distribution Line and Transmission line
Conductor Material: aluminum or aluminium alloy, Aluminum, aluminium alloy, steel, carbon core
Jacket: Bare conductor
Productor name: Overhead Conductor ACSR AAC AAAC ACSS ACCC ACAR Bare Conductor
Insulation: Non-insulation bare conductor
Usage: State Grid, Power station, Transmission Line,overhead line
Standard: BS,ASTM,IEC
port of shipment: Shanghai
Certificates: ISO, CCC, KEMA
High Quality: PICC ensured

Application

The bare conductor:AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.

Construction: Bare aluminum alloy 1350-H19 wires, concentrically stranded around a Class A galvanized coated steel core wire. ACSR consists of a galvanized steel core of 1 wire, 7 wires, 19 wires etc. surrounded by concentric layers of aluminum wire.

Standards

Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.

Specification

1. Aluminum conductor

2. Concentric-Lay-Stranded

3. Coated Steel Reinforced

4. ASTM,BS,CSA,DIN,IEC etc. Standards

Following the American Standards ( ASTM )

B-230 Aluminum Wire, 1350-H19 for Electrical Purposes

B-231 Aluminum Conductors, Concentric-Lay-Stranded

B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)

B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)

Type	Description	No. of Wire	Section Area (mm2)
AAC	All Aluminum Conductor	7~127	16~1500
AAAC	All Aluminum Alloy Conductor	7~91	17~1300
ACSR	Aluminum Conductors Steel Reinforced	7~103	16~1250
AACSR	Aluminum Alloy Conductors Steel Reinforced	7~103	16~1250
ACAR/AW	Aluminum Conductors Aluminum Alloy Reinforced	7~103	16~1250
ACSW/S	Aluminum Conductors Aluminum Clad Steel Wire/Strand	7~103	16~1250
GSW	Galvanized Steel Wire	3/2.64~37/4.55	16.41~765.99

ACSR


		Total Area			Stranding and Wire		Approx		Weight		Nominal	Max. D.C.
Code Name	Nominal	Al.	St.	Total	Diameter		Overall				Breaking	Resistance at
	AWG or				Al.	St.	Diameter	Al.	St.	Total	Load	20℃
	MCM	mm²	mm²	mm²	mm	mm	mm	kg/km	kg/km	kg/km	kN	Ω/km
Turkey	6	13.29	2.19	15.48	6/1.68	1/1.68	5.04	37	17	54	5.24	2.1586
Swan	4	21.16	3.55	24.71	3/2.12	1/2.12	6.36	58	27	85	8.32	1.3557
Swanate	4	21.16	5.35	26.51	7/1.96	1/2.61	6.53	58	42	100	10.53	1.3557
Sparrow	2	33.61	5.61	39.22	6/2.67	1/2.67	8.01	92	44	136	12.70	0.8535
Sparate	2	33.61	8.52	42.13	7/2.47	1/3.30	8.24	92	67	159	16.11	0.8535
Robin	1	42.39	7.10	49.49	6/3.00	1/3.00	9.00	116	55	171	15.85	0.6767
Raven	1/0	53.48	8.90	62.38	6/3.37	1/3.37	10.11	147	69	216	19.32	0.5364
Quail	2/0	67.42	11.23	78.65	6/3.78	1/3.78	11.34	185	88	273	23.62	0.4255
Pigeon	3/0	85.03	14.19	99.22	6/4.25	1/4.25	12.75	233	110	343	29.41	0.3373
Penguin	4/0	107.23	17.87	125.10	6/4.77	1/4.77	14.31	294	139	433	37.06	0.2675
Waxwing	266.8	135.16	7.48	142.64	18/3.09	1/3.09	15.45	373	58	431	30.27	0.2133
Partridge	266.8	135.16	22.00	157.16	26/2.57	7/2.00	16.28	374	172	546	50.29	0.2143
Ostrich	300	152.00	24.71	176.71	26/2.73	7/2.12	17.28	421	193	614	56.52	0.1906
Merlin	336.4	170.45	9.48	179.93	18/3.47	1/3.47	17.50	470	74	544	38.23	0.1691
Linnet	336.4	170.45	27.81	198.23	26/2.89	7/2.25	18.31	472	217	689	62.71	0.1699
Oriole	336.4	170.45	39.81	21.026	30/2.69	7/2.69	18.83	473	311	784	77.27	0.1704
Chickadee	397.5	201.42	11.16	212.58	18/3.77	1/3.77	18.85	555	87	642	43.99	0.1431
Brant	397.5	201.42	26.13	227.55	24/3.27	7/2.18	19.61	558	204	762	64.69	0.1438
Ibis	397.5	201.42	32.77	234.19	26/3.14	7/2.44	19.88	558	256	814	72.11	0.1438
Lark	397.5	201.42	46.97	248.39	30/2.92	7/2.92	2044	560	367	927	88.69	0.1442
Pelican	477	241.68	13.42	255.10	18/4.14	1/4.14	2070	666	105	771	52.16	0.1193
Flicker	477	241.68	31.29	272.97	24/3.58	7/2.39	21.49	670	245	915	76.66	0.1199
Hawk	477	241.68	39.42	281.10	26/3.44	7/2.67	21.79	670	308	978	86.65	0.1199
Hen	477	241.68	56.39	298.07	30/3.20	7/3.20	22.40	671	441	1112	105.34	0.1201
Osprey	556.5	282.00	15.68	297.68	18/4.47	1/4.47	22.35	777	122	899	60.88	0.1022
Parakeet	556.5	282.00	36.58	318.58	24/3.87	7/2.58	23.22	781	286	1067	88.22	0.1027
Dove	556.5	282.00	45.94	327.94	26/3.72	7/2.89	23.55	781	359	1140	101.03	0.1027
Eagle	556.5	282.00	65.81	347.81	30/3.46	7/3.46	24.21	783	515	1298	122.92	0.1030
Peacock	605	306.58	39.74	346.32	24/4.03	7/2.69	24.20	849	311	1160	95.88	0.0945
Squab	605	306.58	49.94	356.52	26/3.87	7/3.01	24.51	850	390	1240	108.14	0.0945
Wood Duck	605	306.58	71.55	378.13	30/3.61	7/3.61	25.25	851	560	1411	128.84	0.0947
Teal	605	306.58	69.87	376.45	30/3.61	19/2.16	25.24	851	548	1399	133.59	0.0947
Kingbird	636	322.26	17.90	340.16	18/4.78	1/4.78	23.88	889	139	1028	69.55	0.08945
Rook	636	322.26	41.81	364.07	24/4.14	7/2.76	24.84	893	326	1219	100.83	0.08989
Grosbeak	636	322.26	52.45	374.71	26/3.97	7/3.09	25.15	893	409	1302	111.80	0.08989
Scoter	636	322.26	75.22	397.48	30/3.70	7/3.70	25.88	895	589	1484	135.44	0.09011
Egret	636	322.26	73.55	395.81	30/3.70	19/2.22	25.90	894	576	1470	140.30	0.09011
Swift	636	322.26	8.96	331.22	36/3.38	1/3.38	23.62	888	70	958	60.52	0.08945
Flamingo	666.6	337.34	43.81	381.55	24/4.23	7/2.82	25.40	936	342	1278	105.66	0.08577
Gannet	666.6	337.34	55.03	392.77	26/4.07	7/3.16	25.76	936	429	1365	117.33	0.08577
Stilt	715.5	362.58	46.97	409.55	24/4.39	7/2.92	26.31	1005	367	1372	113.35	0.07989
Starling	715.5	362.58	59.03	421.61	26/4.21	7/3.28	26.68	1005	461	1466	125.91	0.07989
Redwing	715.5	362.58	82.58	445.16	30/3.92	19/2.35	27.43	1006	647	1653	153.94	0.08009
Tern	795	402.84	27.87	430.71	45/3.38	7/2.25	27.03	1116	217	1333	97.37	0.07191
Condor	795	402.84	52.19	455.03	54/3.08	7/3.08	27.72	1116	408	1524	124.45	0.07191
Cuckoo	795	402.84	52.19	455.03	24/4.62	7/3.08	27.74	1116	408	1524	123.94	0.07191
Drake	795	402.84	65.61	468.35	26/4.44	7/3.45	28.11	1116	512	1628	139.92	0.07191
