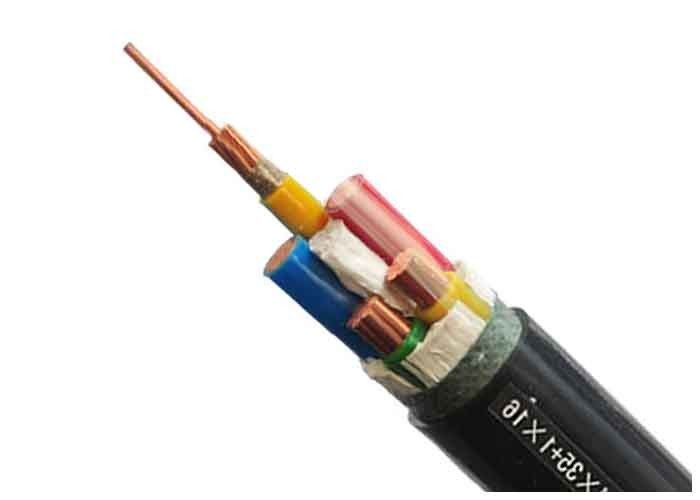

4x35mm2 XLPE Insulated Power Cable Mica Tape XLPE Fire Resistant Cable
Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Rated Voltage: 0.6/1KV
Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2
Application:
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
Constructions
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation: XLPE or LSZH compound
Sheath: LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath
Max. Operating Temperature : 100 meters per roll or wooden drum or as per requirement
Production Capacity : 20 kilometer/ day
MOQ : 5000 meters for small size, 1000 meters for big size
Certificates
CE, RoHS, CCC, KEMA and more others at request
| Nom. Cross-section of conductor |
Insulation Thickness |
Sheath |
Approx. |
Approx |
Max. D.C. Resistance of Conductor (20°C) |
Test Voltage |
Current Rating |
| mm2 |
mm |
Thickness |
O.D. |
Weight |
Ω/km |
A.C |
| |
|
mm |
mm |
kg/km |
|
kV/5min |
In air(A) |
In soil(A) |
| 1×1.5 |
0.7 |
1.8 |
7.7 |
81 |
12.1 |
3.5 |
22 |
33 |
| 4×1.5 |
0.7 |
1.8 |
14.4 |
241 |
12.1 |
3.5 |
20 |
27 |
| 4×2.5 |
0.7 |
1.8 |
15.4 |
295 |
7.41 |
3.5 |
26 |
35 |
| 4×4 |
0.7 |
1.8 |
16.5 |
369 |
4.61 |
3.5 |
34 |
45 |
| 4×6 |
0.7 |
1.8 |
17.8 |
463 |
3.08 |
3.5 |
43 |
57 |
| 4×10 |
0.7 |
1.8 |
20.9 |
667 |
1.83 |
3.5 |
60 |
77 |
| 4×16 |
0.7 |
1.8 |
23.4 |
930 |
1.15 |
3.5 |
83 |
105 |
| 4×25 |
0.9 |
1.8 |
27.1 |
1351 |
0.727 |
3.5 |
105 |
125 |
| 4×35 |
0.9 |
1.8 |
29.5 |
1772 |
0.524 |
3.5 |
125 |
155 |
| 4×50 |
1 |
1.9 |
38.4 |
2380 |
0.387 |
3.5 |
160 |
185 |
| 4×70 |
1.1 |
2 |
43.2 |
3302 |
0.268 |
3.5 |
200 |
225 |
| 4×95 |
1.1 |
2.2 |
47.3 |
4330 |
0.193 |
3.5 |
245 |
270 |
| 4×120 |
1.2 |
2.3 |
52.5 |
5374 |
0.153 |
3.5 |
285 |
310 |
| 4×150 |
1.4 |
2.5 |
58.3 |
6655 |
0.124 |
3.5 |
325 |
345 |
| 4×185 |
1.6 |
2.7 |
64.7 |
8246 |
0.0991 |
3.5 |
375 |
390 |
| 4×240 |
1.7 |
2.9 |
73.1 |
10569 |
0.0754 |
3.5 |
440 |
450 |
| 4×2.5+1×1.5 |
0.7 |
1.8 |
16.5 |
313 |
7.41 |
|
26 |
35 |
| 4×4+1×2.5 |
0.7 |
1.8 |
17.7 |
424 |
4.61 |
|
34 |
45 |
| 4×6+1×4 |
0.7 |
1.8 |
19.1 |
535 |
3.08 |
|
43 |
57 |
| 4×10+1×6 |
0.7 |
1.8 |
22.1 |
760 |
1.83 |
|
60 |
77 |
| 4×16+1×10 |
0.7 |
1.8 |
25.1 |
1071 |
1.15 |
|
83 |
105 |
| 4×25+1×16 |
0.7 |
1.8 |
29 |
1556 |
0.727 |
|
105 |
125 |
| 4×35+1×16 |
0.9 |
1.9 |
31.4 |
1976 |
0.524 |
|
125 |
155 |
| 4×50+1×25 |
1 |
2.1 |
36 |
2689 |
0.387 |
|
160 |
185 |
| 4×70+1×35 |
1.1 |
2.2 |
41.1 |
3719 |
0.268 |
|
200 |
225 |
| 4×95+1×50 |
1.1 |
2.4 |
46.3 |
4903 |
0.193 |
|
245 |
270 |
| 4×120+1×70 |
1.2 |
2.5 |
51 |
6165 |
0.153 |
|
285 |
310 |
| 4×150+1×70 |
1.4 |
2.7 |
55.8 |
7431 |
0.124 |
|
325 |
345 |
| 4×185+1×95 |
1.6 |
2.9 |
62.1 |
9192 |
0.0991 |
|
375 |
390 |
| 4×240+1×120 |
1.7 |
3.1 |
68.8 |
11860 |
0.0754 |
|
440 |
450 |
Operating characteristics
1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;
2. Installing temperature of cable should not be less than 0°C;
3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;
4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
