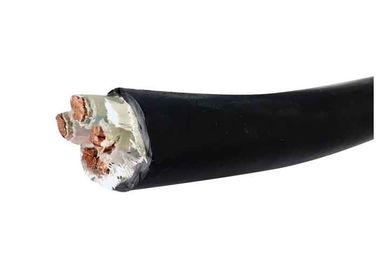

Flame Retardant 0.6 / 1KV LowSmoke Halogen Free Cable With Mica-Tape

Flame Retardant 0.6 / 1KV LowSmoke Halogen Free Cable With Mica-Tape

MOQ: 1000 metri
prezzo: $0.29/M ~ $120/M
Imballaggio standard: Tamburi di legno
Periodo di consegna: 30 GIORNI
Metodo di pagamento: T / T, L / C
Capacità di approvvigionamento: 200 chilometri al mese
Informazioni dettagliate
Luogo di origine
La Cina
Marca
QINGDAO YICABLE CABLE
Certificazione
CE, IEC
conduttore:
Aggiunga il Mica-nastro
Dimensioni:
1.5 - 400 MILLIMETRI QUADRATI
prova:
Nessun rilascio del gas acido dell'alogeno
schermo:
Schermo di rame del nastro
Prestazioni:
Buona proprietà ignifuga
Evidenziare:

low smoke zero halogen wire

,

lszh power cable

Descrizione del prodotto

Flame Retardant 0.6 / 1KV Low Smoke Zero Halogen Cable With Mica-Tape



CU/Mica/XLPE/LSOH, IEC 60331

IEC 60502,60331 IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

CE, CCC, KEMA

Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: XLPE/A

Inner Covering: LSOH

Sheath: LSOH , black

Note: Insulation color as per standards or customer requirement



Applications

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Flame Retardant 0.6 / 1KV LowSmoke Halogen Free Cable With Mica-Tape 0



prodotti
Dettagli dei prodotti
Flame Retardant 0.6 / 1KV LowSmoke Halogen Free Cable With Mica-Tape
MOQ: 1000 metri
prezzo: $0.29/M ~ $120/M
Imballaggio standard: Tamburi di legno
Periodo di consegna: 30 GIORNI
Metodo di pagamento: T / T, L / C
Capacità di approvvigionamento: 200 chilometri al mese
Informazioni dettagliate
Luogo di origine
La Cina
Marca
QINGDAO YICABLE CABLE
Certificazione
CE, IEC
conduttore:
Aggiunga il Mica-nastro
Dimensioni:
1.5 - 400 MILLIMETRI QUADRATI
prova:
Nessun rilascio del gas acido dell'alogeno
schermo:
Schermo di rame del nastro
Prestazioni:
Buona proprietà ignifuga
Quantità di ordine minimo:
1000 metri
Prezzo:
$0.29/M ~ $120/M
Imballaggi particolari:
Tamburi di legno
Tempi di consegna:
30 GIORNI
Termini di pagamento:
T / T, L / C
Capacità di alimentazione:
200 chilometri al mese
Evidenziare

low smoke zero halogen wire

,

lszh power cable

Descrizione del prodotto

Flame Retardant 0.6 / 1KV Low Smoke Zero Halogen Cable With Mica-Tape



CU/Mica/XLPE/LSOH, IEC 60331

IEC 60502,60331 IEC 60227, IEC 60331, IEC 601034, IEC60754 GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

CE, CCC, KEMA

Constructions

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: XLPE/A

Inner Covering: LSOH

Sheath: LSOH , black

Note: Insulation color as per standards or customer requirement



Applications

Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%

Certificates

CE, RoHS, CCC, KEMA and more others at request

Flame Retardant 0.6 / 1KV LowSmoke Halogen Free Cable With Mica-Tape 0
