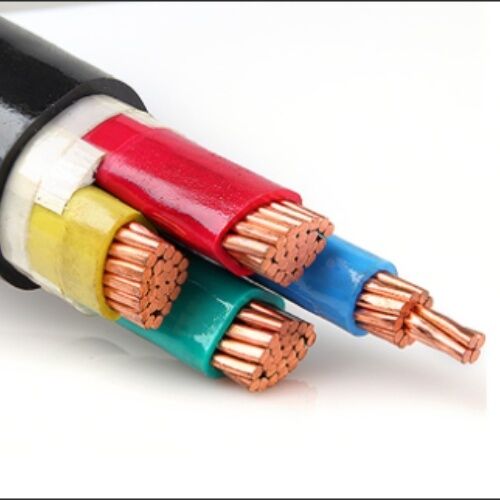

3x240+1x120mm2 Steel Tape Armoured Electrical Cable Copper Core XLPE/PVC Insulated Underground Cable

prodotti

Cavo di controllo multiconduttore

fumo basso zero cavi dell'alogeno

filo di alluminio rivestito di rame

cavo del cannello per saldare

Contattaci

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

Contattaci ora

3x240+1x120mm2 Steel Tape Armoured Electrical Cable Copper Core XLPE/PVC Insulated Underground Cable

MOQ:	1000 metri
prezzo:	US$0.29 -119/Meter
Imballaggio standard:	Tamburi di legno
Periodo di consegna:	7 giorni
Metodo di pagamento:	T / T, L / C
Capacità di approvvigionamento:	20.000 chilometri al mese

Dettagli Informazioni

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

La Cina

Marca

QINGDAO YICABLE CABLE

Certificazione

ISO,CE,IEC,TUV,KEMA

Nome del prodotto:

Cavo sotterraneo di STA

Isolamento:

PVC/XLPE

conduttore:

Di rame

armatura:

Nastro d'acciaio

Dimensioni:

1,0 ~ sqMM 630

I centri:

Il 3+1 centro

Giacca:

PVC/PE/LSZH

Campione libero:

Sì

Garanzia:

2 anni

Standard:

IEC/BS/STATO/VDE

Evidenziare:

armored cable wiring

armoured power cable

Descrizione del prodotto

3x240+1x120mm2 Steel Tape Armoured Electrical Cable Copper Core XLPE/PVC Insulated Underground Cable

Cable details

1.U0/U: 0.6/1kV

2.Standard: IEC60502, BS7870, GB/T12706

3.Max. working temperature: 90 °C , can be 110 °C as requirement

4.Conductor: Class 1/2 annealed bare copper solid or strands

5.Insulation: XLPE

6.Armored: STA

7.Sheath: PVC

8. Cross section area: 1.5~630mm2

9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E

10. Packing:Wooden drum or as requirement

11.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB

12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable

Applications

STA Armored Electric Cable YJV22 4+1 Core Cable applies to electrical power transmission and distribution lines with AC rated voltage Uo/ U up to and including 0.6/1kV.

For outdoor and indoor installation in damp and wet locations,laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.

YJ: XLPE insulation

V: PVC insulation

V: PVC sheath

22: Galvanized steel tape armoring

32: Galvanized steel wire armoring

Standards

International: IEC 60502, IEC 60228, IEC 60332

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

font-size:10.0000pt;mso-font-kerning:0.0000pt;" >PVC type ST₂ to IEC 60502, black

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x cable O.D

Specifications

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Covering Thickness	Steel Tape Thickness	Sheath Thickness	Approx. O.D.	Approx.Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
3 × 4+ 1 × 2.5	1/2.25+1/1.38	0.7	1.0	2 × 0.2	1.5	16.0	443	4.61	3.5	34	45
3 × 6+ 1 × 4	1/2.76+1/2.25	0.7	1.0	2 × 0.2	1.5	17.0	531	3.08	3.5	43	57
3 × 10+ 1 × 6	7/1.38+1/2.8	0.7	1.0	2 × 0.2	2.0	20.0	741	1.83	3.5	60	77
3 × 16+ 1 × 10	7/1.78+7/1.38	0.7	1.0	2 × 0.2	2.0	23.0	1135	1.15	3.5	83	105
3 × 25+ 1 × 16	7/2.14+7/1.78	0.9	1.0	2 × 0.2	2.0	26.0	1556	0.727	3.5	105	125
3 × 35+ 1 × 16	7/2.52+7/1.78	0.9	1.0	2 × 0.2	2.0	28.0	1896	0.524	3.5	125	155
3 × 50+ 1 × 25	10/2.52+7/2.14	1.0	1.0	2 × 0.2	2.0	31.0	2518	0.387	3.5	160	185
3 × 70+ 1 × 35	14/2.52+7/2.52	1.1	1.2	2 × 0.2	2.5	36.0	3293	0.268	3.5	200	225
3 × 95+ 1 × 50	19/2.52+10/2.52	1.1	1.2	2 × 0.5	2.5	40.0	4349	0.193	3.5	245	270
3 × 120+ 1 × 70	24/2.52+14/2.52	1.2	1.2	2 × 0.5	2.5	44.0	5365	0.153	3.5	285	310
3 × 150+ 1 × 70	30/2.52+14/2.52	1.4	1.4	2 × 0.5	3.0	49.0	6468	0.124	3.5	325	345
3 × 185+ 1 × 95	37/2.52+19/2.52	1.6	1.4	2 × 0.5	3.0	52.0	7854	0.0991	3.5	375	390
3 × 240+ 1 × 120	48/2.52+24/2.52	1.7	1.6	2 × 0.5	3.5	68.0	9814	0.0754	3.5	440	450
3 × 300+ 1 × 150	61/2.52+30/2.52	1.8	1.7	2 × 0.5	3.5	71.0	12781	0.0601	3.5	505	515
3 × 400+ 1 × 240	61/2.97+48/2.52	2.0	1.7	2 × 0.5	3.5	76.0	16359	0.0470	3.5	570	575

3x240+1x120mm2 Steel Tape Armoured Electrical Cable Copper Core XLPE/PVC Insulated Underground Cable 0

Packing & Shipping

All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.

After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.

Our Services

♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
