Three-core XLPE-insulated Steel Wire Armoured Electrical Cable 300mm2 XLPE Copper Cable 33kV

MOQ:	500 METRI
prezzo:	US$0.52~125 per Meter
Imballaggio standard:	Tamburi di legno
Periodo di consegna:	7-10 giorni
Metodo di pagamento:	T / T, L / C
Capacità di approvvigionamento:	10.000 chilometri al mese

Dettagli Informazioni

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

La Cina

Marca

QINGDAO YICABLE CABLE

Certificazione

ISO,CE,IEC,TUV,KEMA

Tipo di prodotto:

cavo di 300mm2 XLPE

Tensione:

33kv

conduttore:

Di rame

Isolamento:

XLPE

Armatura:

filo di acciaio

Sreen:

nastro di rame

I centri:

il Tre-centro

Materiale della guaina:

PVC/PE/LSOH

Standard:

IEC/BS/STATO/VDE

Garanzia:

2 anni

Evidenziare:

armored electrical wire

armored cable wiring

Descrizione del prodotto

Three-core XLPE-insulated Steel Wire Armoured Electrical Cable 300mm2 XLPE Copper Cable 33kV

Application

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, switching blocks, in electric power plants and industrial plants. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges.

Construction

Conductor:	Cu round conductor, multi wire stranded compacted (RM), class 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295
Inner screen:	extruded semi-conductive skin on conductor
Insulation:	XLPE (cross-linked polyethylene, recent mark: PE-X) compound DIX 8 acc. to HRN HD 620 S1 ili 2XI1 acc. to DIN VDE 0207 dio 22
External screen:	extruded semi-conductive skin on insulation, longitudinally spliced with insulation (+tape of semi-conductive material)
Conductor screen:	copper tape wrapped in counter-helix
Filler:	fillers strip, yarn, or paper
Wrapping:	non woven wrapping tape or flame retardant or water proof
Inner covering:	Extruded PVC
Armour:	Galvanized Steel Wire
Overall Sheath	polyvinylchloride (PVC) or FR-PVC, PE, LSOH
Sheath color	Black, red or customized

Standards

IEC 60502, 60228, 60332, 60331

DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)

Technical data

Test voltage	6 / 10 kV	[kV]	21 / 5 min.
	12 / 20 kV	[kV]	42 / 5 min.
	18 / 30 kV	[kV]	63 / 5 min.
Temperature range	in motion		-20°C till +90°C
	fixed		-20°C till +90°C
Operating temperature	short circuit	°C	250
Short circuit time	max.	[sec]	5
Bending radius	min.	x diameter	15
Flammability	standard		EN 50265-2-1

Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

Ordering Advice

Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size $ Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Specifications

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Inner Sheath Thickness	Dia. Of Armor Wire	Sheath Thickness	Approx. O.D.	Approx.Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
3 × 50	10/2.52	8	1.8	3.15	3.5	80.0	9376	0.387	63	175	180
3 × 70	14/2.52	8	1.8	3.15	3.6	84.0	10426	0.268	63	220	220
3 × 95	19/2.52	8	1.8	3.15	3.7	87.0	11475	0.193	63	255	265
3 × 120	24/2.52	8	1.8	3.15	3.8	90.0	12598	0.153	63	290	300
3 × 150	30/2.52	8	1.8	3.15	3.9	93.0	13855	0.124	63	330	340
3 × 185	37/2.52	8	1.8	3.15	4.0	96.0	15233	0.0991	63	435	380
3 × 240	48/2.52	8	2.0	3.15	4.2	102.0	17481	0.0754	63	495	435
3 × 300	61/2.52	8	2.0	3.15	4.4	107.0	19731	0.0601	63	565	485
3 × 400	61/2.97	8	2.0	3.15	4.6	114.0	23422	0.0470	63	640	520

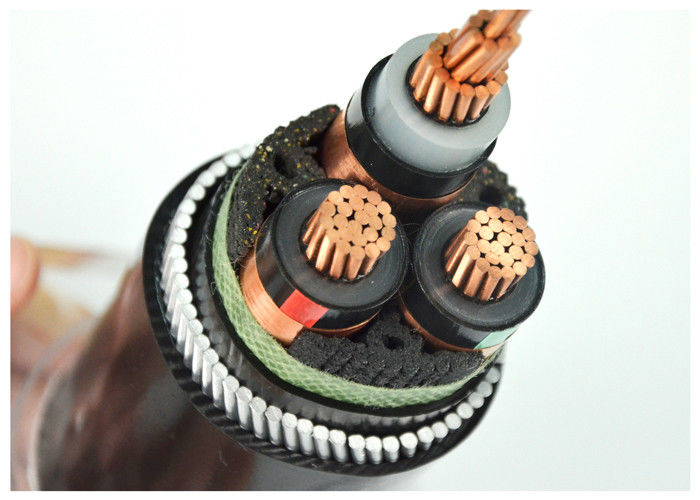

Three-core XLPE-insulated Steel Wire Armoured Electrical Cable 300mm2 XLPE Copper Cable 33kV 0

This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
